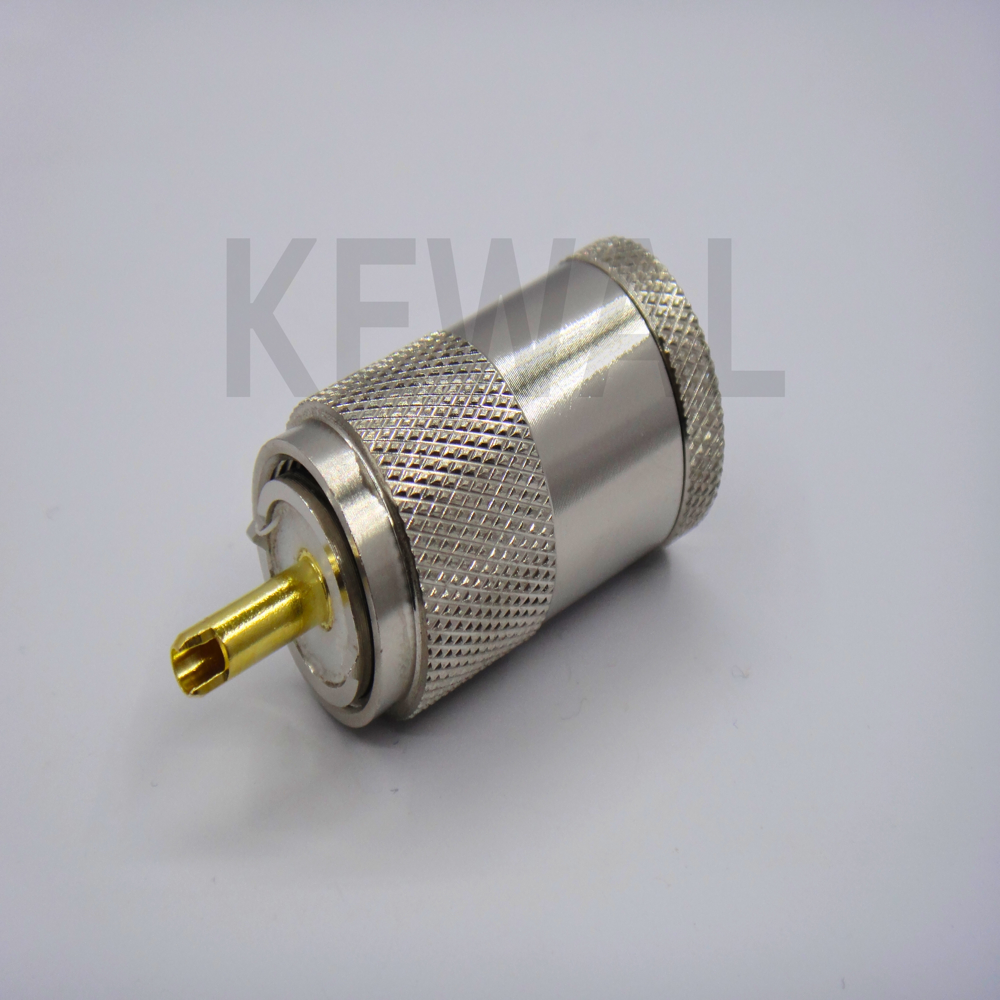

UHF Male Clamp RG 217

UHF Male Clamp RG 217 Specification

Capacity
Standard

Application
RF Transmission, Antenna Connections

Pairs
Single

Connector Type
Clamp Type

Voltage Rating
Maximum 500 Volts

Temperature
Operating: -20C to +80C

Material
Brass Body, Nickel Plated

Male End Type
UHF Male (PL-259)

Connector
UHF Male Clamp

Outer Diameter
10.80 mm approx

Wire Gauge
10 AWG

Insulation
Polyethylene

Color
Silver/Metallic

Cable Type
RG 217

Jacket Material
PVC

Flame Resistance Level
Standard

Sheild
Single Braid Shield

Number of Conductor
1

Length
Custom/As Required

Cable Length
Custom Length

Plating
Nickel/Gold (Center Pin)

Mounting Style
Cable Mount

Weather Resistance
Yes

Coupling Mechanism
Threaded

Termination Style
Clamp Type

Gender
Male

Impedance
50 Ohms

RoHS Compliance
Yes

Dielectric
Polyethylene

Contact Material
Brass, Gold Plated

Insertion Loss
Low

Frequency Range
DC to 300 MHz

Standards
MIL-C-39012 Compliant

About UHF Male Clamp RG 217

The UHF Male Clamp RG 217 connector is a prime choice for RF transmission and antenna connections, combining opulent performance with famed reliability. Engineered for flexibility, it supports custom lengths with 10 AWG single braid shield and a robust PVC jacket. The center pin is gold plated for reduced insertion loss and enhanced conductivity. Nickel/gold plating, weather resistance, and a brass body ensure lasting durability. Enjoy instant savings with our competitive pricing, special rates, and MIL-C-39012 compliant quality. Proudly manufactured, exported, and supplied from India.

Wide Application and Versatile Surface Use

The UHF Male Clamp RG 217 is expertly designed for superior performance on varied surfaces, perfect for use in both indoor and outdoor RF transmission settings. It easily mounts on cable surfaces, making it highly suitable for antenna connections and general RF signal transmission applications. The clamp-type termination ensures a secure and efficient connection, whether deployed on metallic or composite surfaces, providing dependable signal continuity in both commercial and industrial environments.

Sample Availability, Efficient Packaging, and Export Markets

Quotation requests for the UHF Male Clamp RG 217 are welcomed, with prompt sample availability to ensure satisfaction before order completion. Each connector is securely packaged to ensure safe arrival at your facility, regardless of destination. We cater to a diverse export market, including North America, Europe, Asia, and the Middle East. Swift order processing and transparent tracking keep you informed from quotation through final delivery, ensuring a professional buying experience.

FAQ's of UHF Male Clamp RG 217:

Q: How is the UHF Male Clamp RG 217 typically used?

A: The UHF Male Clamp RG 217 is commonly utilized for RF transmission and antenna connections in varied environments, thanks to its robust construction and reliable connectivity.

Q: What surfaces can the UHF Male Clamp RG 217 be mounted on?

A: This connector is designed for cable mounting and is suitable for metallic and composite surfaces, making it highly versatile for different installation settings.

Q: When can I expect the arrival of my order after completion?

A: After your order is completed, shipping timelines depend on your location and preferred shipping method, but prompt packaging ensures your order reaches you in optimal condition.

Q: Where do you export the UHF Male Clamp RG 217 connectors?

A: We export worldwide, including regions in North America, Europe, Asia, and the Middle East, supporting a broad spectrum of international customers.

Q: What are the benefits of the clamp type termination style?

A: The clamp type termination provides a secure mechanical connection, consistent performance, and easy installation, even in challenging environments.

Q: How can I request a quote or sample for this product?

A: You can request a quotation or sample by contacting our sales team directly. We respond quickly to inquiries and ensure samples are sent for your evaluation.
